In commercial and industrial air conditioning systems, air filtration is not a standalone function—it is a system-level protection strategy. The reliability, energy efficiency, and service life of an HVAC system depend heavily on how effectively airborne contaminants are removed at each filtration stage.
Among the most widely adopted solutions, the bag-type air filter plays a critical role in multi-stage filtration architectures. By combining high dust-holding capacity with stable airflow performance, bag-type air filters are designed to protect downstream components while maintaining indoor air quality.
Understanding the Bag-Type Air Filter Design

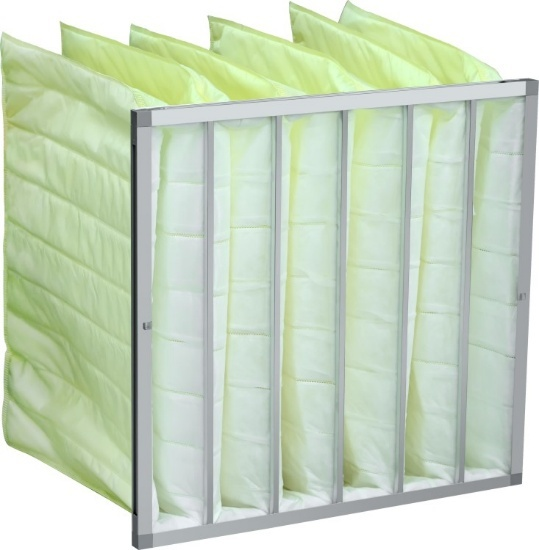

A bag-type air filter (also known as a pocket filter) consists of multiple flexible filter pockets mounted within a rigid frame. Compared to flat panel filters, this design offers a significantly larger effective filtration area, which directly translates into:
Higher dust-holding capacity
Lower pressure drop over the service cycle
Longer replacement intervals
The pocket structure allows air to pass evenly through the filter media, reducing localized loading and maintaining stable airflow even as dust accumulates.
The Role of Primary Bag-Type Air Filters in HVAC Systems
Filtration Target: Particles ≥5μm
The primary bag-type air filter is mainly used to filter out dust particles equal to or larger than 5 micrometers (≥5μm) in air conditioning systems. These particles typically include:
Coarse dust
Textile fibers
Pollen
Larger industrial particulates
System-Level Protection Function
Rather than focusing solely on air cleanliness, the primary bag-type air filter serves a critical protective function:
Shields the medium-efficiency filter from premature loading
Prevents rapid pressure drop increases
Extends the service life of downstream filters
By intercepting larger particles early in the airflow path, the primary filter reduces the mechanical and contaminant stress placed on subsequent filtration stages.
Operational Advantages
Primary bag-type air filters are especially valuable in:
Commercial buildings with high foot traffic
Industrial HVAC systems exposed to process dust
Fresh air intake units in urban environments
HEALU designs primary bag-type air filters with optimized pocket geometry and durable media to ensure consistent performance under variable airflow conditions.
Medium-Efficiency Bag-Type Air Filters: The Critical Second Line of Defense
Filtration Target: Particles ≥1μm
The medium-efficiency bag-type air filter is primarily used to filter out dust particles equal to or larger than 1 micrometer (≥1μm). This particle range includes:
Fine dust
Mold spores
Combustion byproducts
Certain bacteria-carrying particulates
Protecting High-Efficiency Filtration Stages
In a properly designed HVAC filtration system, medium-efficiency bag-type air filters are installed upstream of:
Sub-high-efficiency filters
HEPA or high-efficiency filters
Their role is to stabilize the air quality load reaching these sensitive filters. By removing fine particulates before they accumulate downstream, medium-efficiency bag-type filters:
Extend the service life of high-efficiency filters
Maintain stable system pressure
Reduce total operating costs
This layered filtration strategy is essential in environments with strict air quality requirements.
Why Bag-Type Air Filters Excel in Multi-Stage Filtration Systems
High Dust-Holding Capacity
The deep-pocket design dramatically increases the volume of contaminants a filter can retain. This reduces:
Maintenance frequency
Filter replacement downtime
Long-term operating costs
Stable Pressure Drop Characteristics
Compared with flat filters, bag-type air filters exhibit a slower rise in pressure drop over time. This helps maintain:
Consistent airflow
Energy-efficient fan operation
Predictable system performance
Compatibility with Standard HVAC Units
Bag-type air filters are available in standardized dimensions and frames, allowing easy integration into:
Air handling units (AHUs)
Rooftop units
Central air conditioning systems
HEALU offers bag-type air filters engineered to match common HVAC housing specifications, simplifying retrofit and replacement.
Typical Application Scenarios
Commercial Buildings
Office complexes, shopping centers, and hotels rely on bag-type air filters to balance air quality, energy efficiency, and maintenance cost.
Industrial Facilities
Manufacturing plants use multi-stage filtration with bag-type air filters to protect equipment, ensure process stability, and maintain acceptable indoor air conditions.
Healthcare and Laboratories
While HEPA filters handle final purification, medium-efficiency bag-type air filters are essential in protecting high-efficiency stages from rapid fouling.
Data Centers and Technical Spaces
Stable airflow and dust control are critical for electronic reliability. Bag-type air filters help minimize particulate accumulation on sensitive components.
Conclusion
The bag-type air filter is not simply a consumable—it is a strategic component in HVAC system protection. By combining primary filtration for particles ≥5μm and medium-efficiency filtration for particles ≥1μm, system designers can effectively protect downstream filters, stabilize airflow, and reduce operating costs.
With application-driven engineering and consistent quality standards, HEALU provides bag-type air filter solutions that support reliable, energy-efficient, and long-life HVAC system operation across commercial and industrial environments.
